0.6/1KV
(FA-)SPYC, SPYCB
(FA-)SPYCY, SPYCBY
Standards
JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

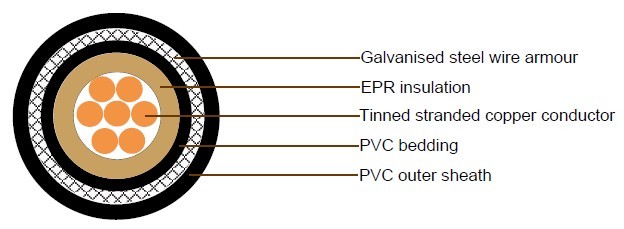

Cable Construction
Conductor |
S |
Tinned annealed stranded copper, class 2 according to IEC 60228 |
Insulation |
P |
85°C EPR as per JIS C 3401 |
Bedding |
Y |
PVC as per JIS C 3401 |
Armor |
C |
Galvanized steel wire braid(-C TYPE) or |
Sheath |
Y |
PVC as per JIS C 3401 |
Outer sheath color |
|
Black |
Cable Parameter
(FA-)SPYC, SPYCB
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-) SPYC, SPYCB | ||||
| Size | Construction | O.D | Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.0 |
5.9 |
0.3 |
7.2 |
0.4 |
100 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.0 |
6.3 |
0.3 |
7.8 |
0.4 |
120 |
4 |
7/0.85 |
2.55 |
1.0 |
1.0 |
6.9 |
0.3 |
8.2 |
0.4 |
140 |
6 |
7/1.04 |
3.12 |
1.0 |
1.0 |
7.4 |
0.3 |
8.7 |
0.4 |
170 |
10 |
7/1.35 |
4.05 |
1.0 |
1.1 |
8.6 |
0.3 |
9.9 |
0.4 |
225 |
16 |
7/1.70 |
5.1 |
1.0 |
1.1 |
9.6 |
0.3 |
10.9 |
0.4 |
300 |
25 |
7/2.14 |
6.42 |
1.2 |
1.2 |
11.5 |
0.3 |
12.8 |
0.5 |
425 |
35 |
7/2.52 |
7.56 |
1.2 |
1.2 |
12.7 |
0.3 |
14.0 |
0.6 |
535 |
50 |
19/1.78 |
8.9 |
1.4 |
1.3 |
14.6 |
0.3 |
15.9 |
0.6 |
695 |
70 |
19/2.14 |
10.7 |
1.6 |
1.4 |
17.2 |
0.3 |
18.5 |
0.7 |
960 |
95 |
19/2.52 |
12.6 |
1.6 |
1.5 |
19.3 |
0.3 |
20.6 |
0.8 |
1250 |
120 |
37/2.03 |
14.2 |
1.6 |
1.5 |
20.9 |
0.3 |
22.2 |
0.9 |
1510 |
150 |
37/2.25 |
15.8 |
1.8 |
1.6 |
23.1 |
0.3 |
24.4 |
1.0 |
1830 |
185 |
37/2.52 |
17.6 |
2.0 |
1.7 |
25.5 |
0.3 |
26.8 |
1.1 |
2250 |
240 |
61/2.25 |
20.3 |
2.2 |
1.8 |
28.8 |
0.3 |
30.1 |
1.2 |
2910 |
300 |
61/2.52 |
22..7 |
2.4 |
1.9 |
31.8 |
0.4 |
33.6 |
1.3 |
3680 |
(FA-)SPYCY, SPYCBY
| Conductor | Thick. of insulation |
Thick. of bedding |
Dia. over bedding |
Dia. of armor |
(FA-) SPYCY, SPYCBY | |||||
| Size | Construction | O.D | Thick.of Sheath |
Nominal overall dia. |
Tolerance | Cable weight (Approx.) |
||||
| mm² | No./mm | mm | mm | mm | mm | mm | mm | mm | mm | Kg / Km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.0 |
5.9 |
0.3 |
0.8 |
9.0 |
0.4 |
135 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.0 |
6.3 |
0.3 |
0.8 |
9.4 |
0.4 |
150 |
4 |
7/0.85 |
2.55 |
1.0 |
1.0 |
6.9 |
0.3 |
0.8 |
10.0 |
0.4 |
175 |
6 |
7/1.04 |
3.12 |
1.0 |
1.0 |
7.4 |
0.3 |
0.8 |
10.5 |
0.4 |
205 |
10 |
7/1.35 |
4.05 |
1.0 |
1.1 |
8.6 |
0.3 |
0.8 |
11.7 |
0.5 |
270 |
16 |
7/1.70 |
5.1 |
1.0 |
1.1 |
9.6 |
0.3 |
0.9 |
12.9 |
0.5 |
350 |
25 |
7/2.14 |
6.42 |
1.2 |
1.2 |
11.5 |
0.3 |
0.9 |
14.8 |
0.6 |
485 |
35 |
7/2.52 |
7.56 |
1.2 |
1.2 |
12.7 |
0.3 |
1.0 |
16.2 |
0.6 |
605 |
50 |
19/1.78 |
8.9 |
1.4 |
1.3 |
14.6 |
0.3 |
1.0 |
18.1 |
0.7 |
775 |
70 |
19/2.14 |
10.7 |
1.6 |
1.4 |
17.2 |
0.3 |
1.1 |
20.9 |
0.8 |
1060 |
95 |
19/2.52 |
12.6 |
1.6 |
1.5 |
19.3 |
0.3 |
1.1 |
23.0 |
0.9 |
1360 |
120 |
37/2.03 |
14.2 |
1.6 |
1.5 |
20.9 |
0.3 |
1.2 |
24.8 |
1.0 |
1650 |
150 |
37/2.25 |
15.8 |
1.8 |
1.6 |
23.1 |
0.3 |
1.2 |
27.0 |
1.1 |
1980 |
185 |
37/2.52 |
17.6 |
2.0 |
1.7 |
25.5 |
0.3 |
1.3 |
29.6 |
1.2 |
2420 |
240 |
61/2.25 |
20.3 |
2.2 |
1.8 |
28.8 |
0.3 |
1.4 |
33.1 |
1.3 |
3110 |
300 |
61/2.52 |
22..7 |
2.4 |
1.9 |
31.8 |
0.4 |
1.4 |
36.6 |
1.5 |
3910 |
